24V DC Powered Industrial Linear Actuator TOMUU U20K Solar Farm Gear

  • 1
  • 2
  • 3

Model Number : U20K

Ratio : 110:1

Duty Cycle : 10%

Price : $280-320 / piece

IP Class : IP65/IP66/IP67

Certification : CE

Rated Load (N) Pull : 20,000

Brand Name : TOMUU

Code : A

MOQ : Contact Supplier

Rated Speed(mm/s) Full Load (24V) : 1.6mm/s

Place of Origin : Guangdong, China

Rated Current(A) : 7.0

Contact Now

24V DC Powered Industrial Linear Actuator TOMUU U20K Solar Farm Gear
The TOMUU U20K 24V DC powered industrial linear actuator is engineered specifically for large solar farm tracking equipment, matching standard solar power control voltage systems. With a 7A rated working current, it delivers 20,000N push and pull force and 65,000N maximum static load capacity that varies with stroke size.
24V DC Powered Industrial Linear Actuator TOMUU U20K Solar Farm Gear
Technical Specifications
Voltage 12V DC / 24V DC
Max Load 20,000N
Speed 1.6mm/s ±5%
Duty Cycle 10%
Protection Class IP65/IP66/IP67
Noise Level ≤60dB
Stroke 100-800mm
Material Aluminium Alloy

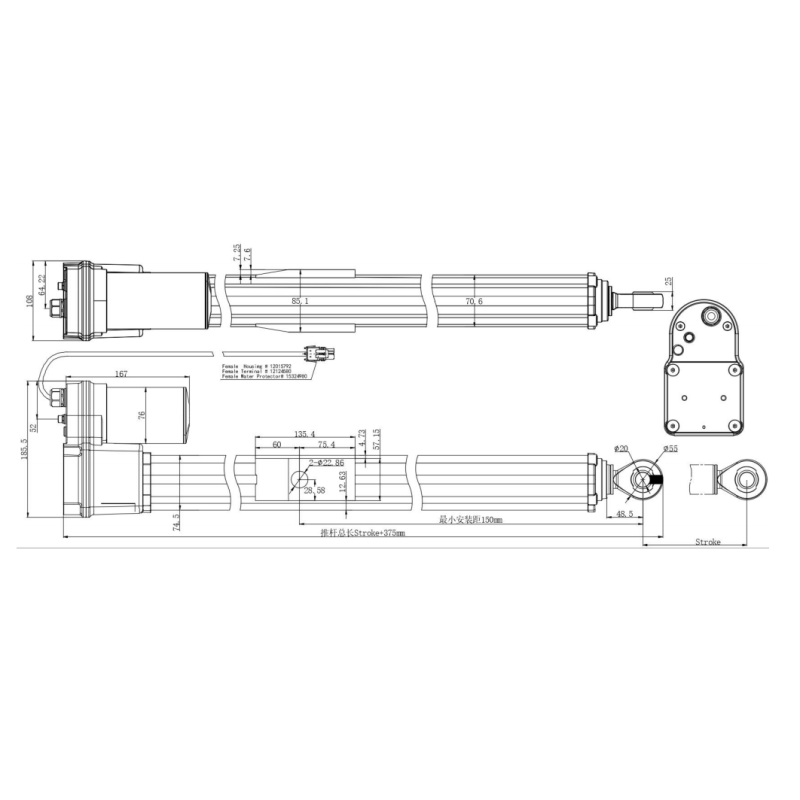

Product Dimensions
24V DC Powered Industrial Linear Actuator TOMUU U20K Solar Farm Gear
Key Advantages
  • Standardized Voltage Compatibility: 24V DC input design aligns perfectly with mainstream solar power station control circuit standards, eliminating the need for additional voltage conversion modules during installation
  • High Performance Output: Powerful 20kN thrust capability efficiently handles multi-row linked solar tracking frames
  • Superior Load Capacity: High static load rating securely locks solar panels in position against strong wind gusts and environmental forces
  • Robust Environmental Protection: IP66 fully sealed construction reduces routine field maintenance frequency in demanding outdoor conditions
  • Custom Configuration Options: Abundant customization choices meet mass standardized procurement demands for global megawatt-level solar farm construction projects
With IP66 dust and splash resistance and an operating temperature range of -40℃ to +65℃, this actuator ensures stable performance in all outdoor solar farm environments. Multiple customizable structural parameters are available to suit specific application requirements.
